KX Co-KneadersThe aluminium specialist

High-end mixing and kneading technology for anode paste production in the aluminium industry.

For more than 70 years, BUSS Co-Kneaders have been the benchmark for cost-effective compounding of anode paste in the aluminium industry. We continue the tradition with our current KX series. Safe. Efficient. Proven.

This technology ensures consistently high and uniform quality anode paste at high specific output.

The advanced KX geometry provides the following main advantages:

  • Throughput/performance for current and future requirements in the aluminium industry
  • Optimal mixing and pitch dispersion without clumping and deposits
  • Reduced pitch consumption due to highly efficient mixing
  • Longevity and stability for low operating and maintenance costs

KX Compounder Most efficient mixing technology for anode paste

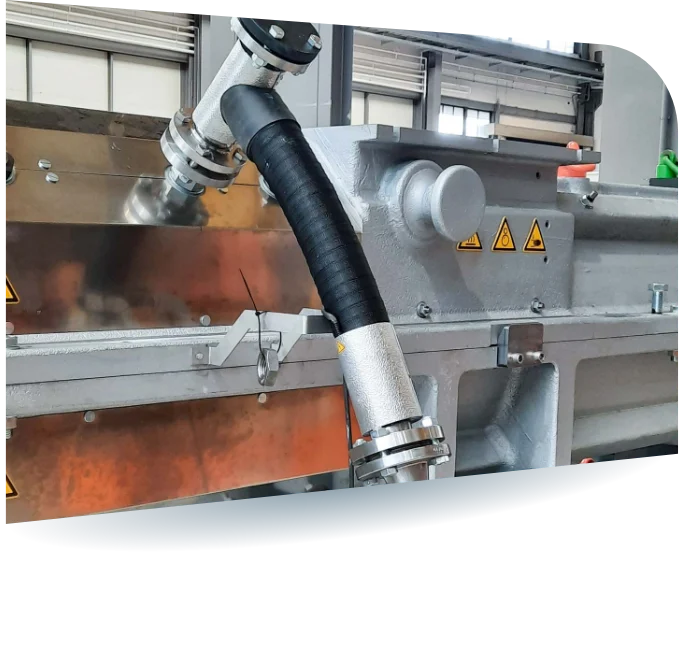

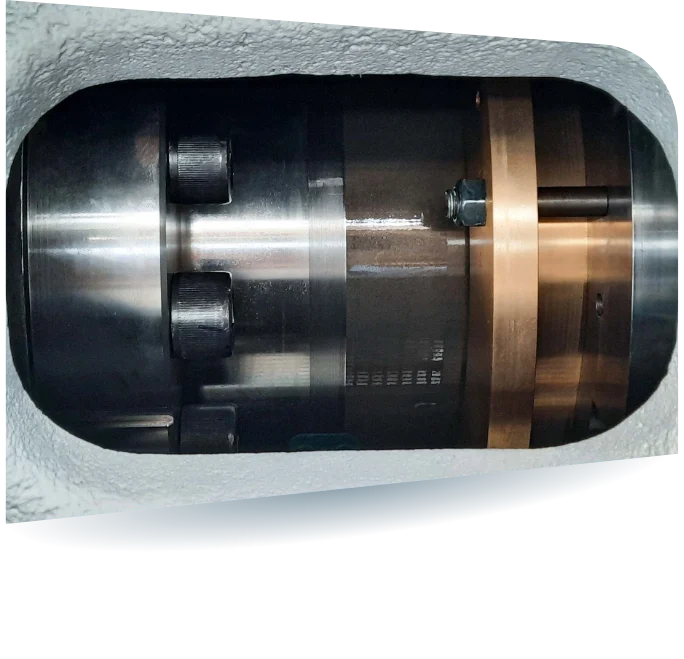

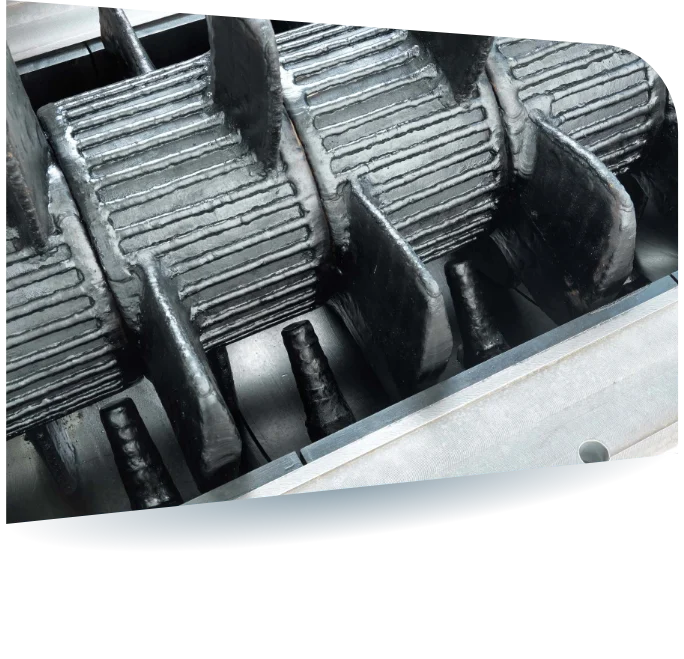

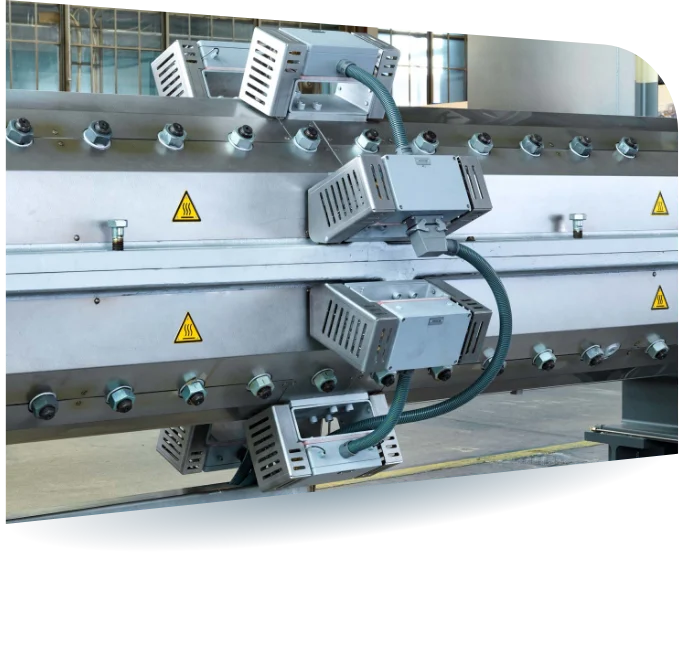

Kneading Process – In the kneading and mixing section, the focus is on optimal mixing with gentle processing of the coke fraction. Numerous flow separations and deflections with consistent shear rates ensure maximum homogeneity. This leads to optimized performance of the anode end product. Robust Construction – The KX Kneader is designed for the highest application demands. Years of experience result in long service life, stable operation, high uptime, and reduced maintenance costs. Pitch Injection – In the transition area, liquid pitch is injected directly into the feed material through drilled kneading bolts. The design ensures optimal distribution and dosing of the pitch to optimize quality and operating costs. Electrical Heating – The process area is electrically heated. This concept avoids additional installation costs compared to liquid heating (HTM). The electrical heating, combined with the robust construction of the KX, allows for restarting with a fully loaded kneader barrel after longer, unplanned downtimes, thus contributing to low operating costs. Detailaufnahme der KX-Schnecke mit ihrer einzigartigen vierflügeligen Schneckengeometrie, die optimiert ist für die Compoundierung von Anodenmassen. Das robuste Design des KX Ko-Kneters führt zu einer langen Lebensdauer des Compounders und zu einem reduzierten Wartungsaufwand. Die Injektion von flüssigem Pech über gebohrte Knetbolzen führt im Prozessraum zu einer optimierten Einmischung für maximale Qualität in der Compoundierung von Anodenmassen. Die elektische Beheizung des Prozessbereichs des KX Ko-Kneters ist effizienter als die Flüssigbeheizung (HTM).

KX Co-KneadersThe unique operating principle

The KX Co-Kneader process zone is divided into four functional sections, in which the screw geometry is optimised for the specific task:

Intake section
Intake section
The intake section takes up the incoming coke and transports it into the process zone by feeding elements with continuous flights.
Transition section
Transition section
In the transition section, liquid pitch is directly injected into the feedstock via drilled kneading bolts. At the end of this section, the screw profile changes from transport to mixing and kneading.
Kneading section
Kneading section
In the kneading and mixing section, the focus is on optimum mixing. Innumerable flow separations and reorientations with uniform shear rates ensure maximum homogeneity.
Dynamic throttling
Dynamic throttling
Dynamic throttling is an innovative feature that replaces the flap-die used previously. Screw flights with reduced feeding effect slow down the mass flow to increase the filling degree in the kneading section, resulting in optimized mixing.

More about our process technology

Properties & benefitsUnique features of the KX Co-Kneader

  • Improved and uniform anode quality thanks to optimised mixing technology, dynamic throttling and an adjustable flap gate

  • Higher specific output per machine size

  • Improved accessibility due to elimination of the external shaft bearing and heating

  • Less maintenance effort thanks to low wear

  • Lower investment, installation and maintenance costs thanks to electrical heating and elimination of hydraulic systems

  • Electrical heating for greater safety and ease of use

  • Optimal mixing and pitch distribution by injecting liquid pitch, simultaneous prevention of buildup and clumping

  • No volatile emissions or caking on the shaft thanks to liquid pitch injection

  • Optimally reduced pitch consumption thanks to highly efficient mixing

  • Greater operator and plant safety

  • Shorter downtimes and improved serviceability

  • Robust and stable machine design

  • Longevity and stability for low operating costs

Details for anode paste compounding

Efficient service concept

The BUSS service team is available worldwide to provide professional support for your compounding plant.

From project engineering, process support consultation, installation and commissioning, to training and unparalleled service, we partner you in securing your long-term investment.

This also incorporates the retrofitting, overhaul, relocation or modernization of compounding plants.

Technical data

Barrel Diameter [mm]

540

Process Length [L/D]

9,5

Speed Max. [rpm]

70

Drive Power [kW]

400

Output Rates* [tons/h]

up to 40

Dimensions** L x W x H [mm]

14 000 x 2 100 x 2 200

Barrel Diameter [mm]

650

Process Length [L/D]

9,5

Speed Max. [rpm]

70

Drive Power [kW]

600

Output Rates* [tons/h]

up to 65

Dimensions** L x W x H [mm]

15 600 x 2 200 x 2 500

* Typical maximum rates. Maximum values may differ, contact BUSS for further information.
** Approximate values only. Excludes swivel device, tail-shaft bracket and connecting tube.
