Drum Cooler Type CCC

The BBA Cooler features a compact design and very efficient cooling performance

Our drum coolers are highly versatile and find applications in various branches of industries daily.

High cooling efficiency and a compact design combined with user-friendliness make our drum coolers extremely popular for our customers.

Features & advantages

  • Compact design
  • Uniform product cooling
  • Optimal chip size for subsequent processes
  • Easy access to processing area for ideal and sound cleaning
  • Reduced contamination
  • Stainless steel design
  • Closed water loop cooling media circuit

Functional description

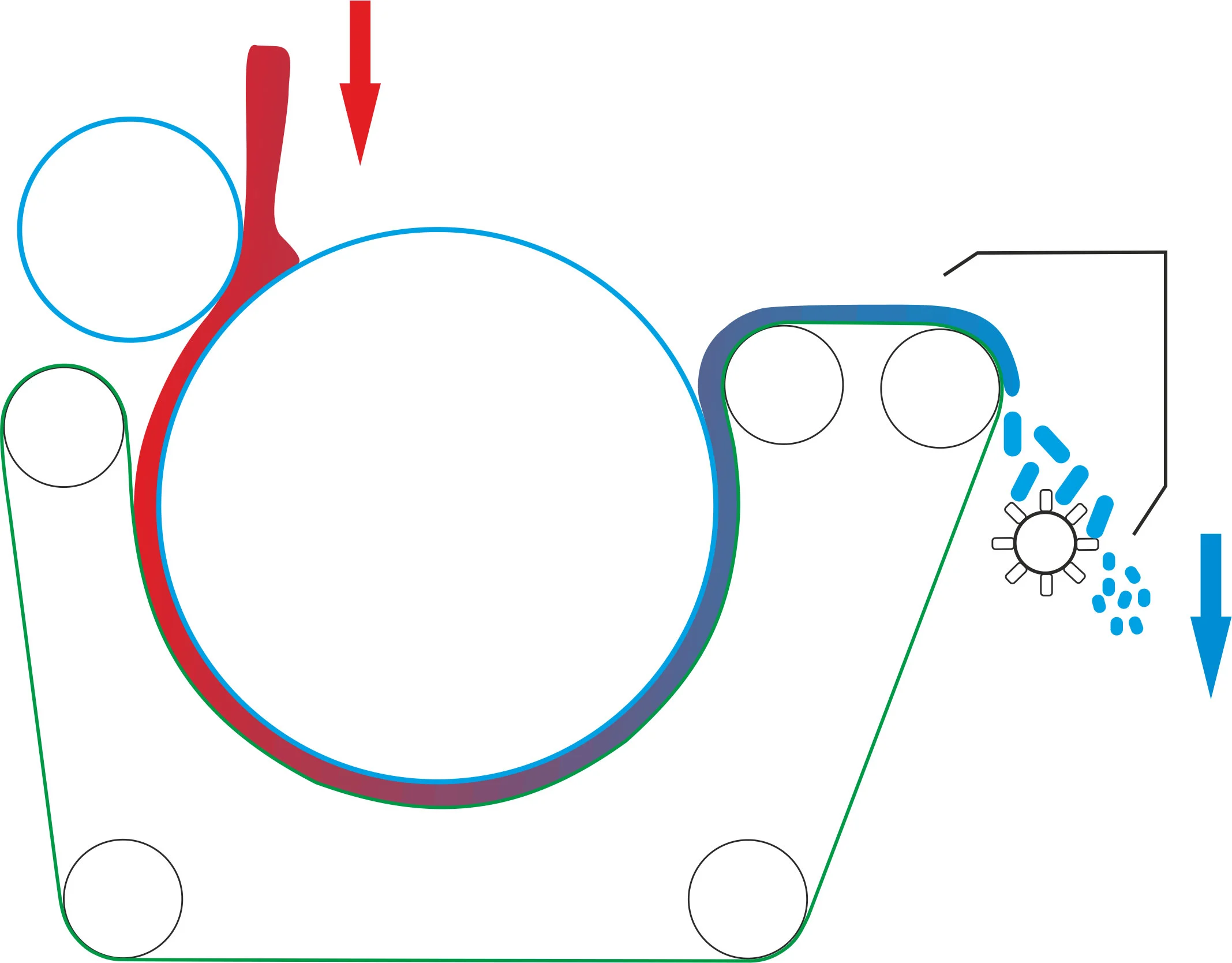

Our drum cooler are designed for the continuous Cooling, Solidifying and Flaking of viscous materials . The hot melt is being rolled out into a thin film. This film is then being pressed up against the surface of a cooled drum and fed solidified into a flaker unit.

Of interest to these industries

Process Solutions

From a lab unit up to big production machines we deliver also customized solutions.

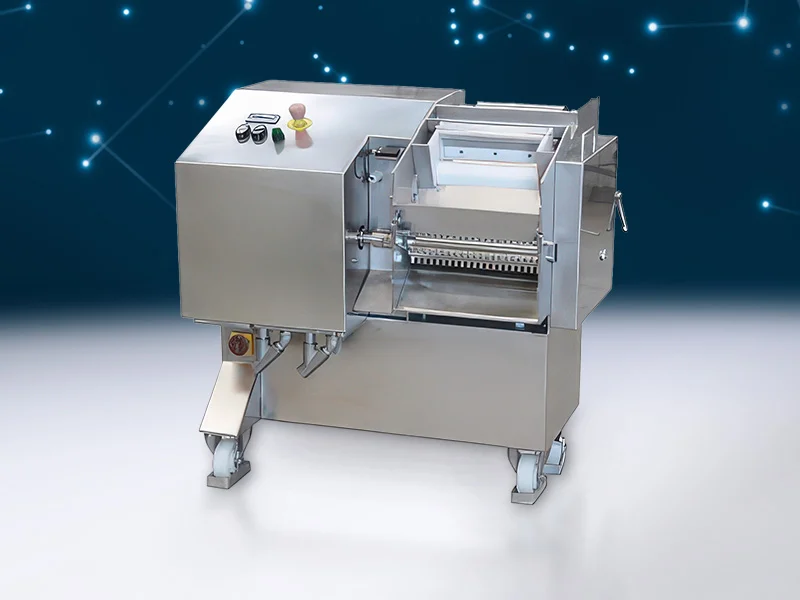

Lab and small batch production

Type CCCL-16/25 for throughputs up to 20 kg/h*
Type CCD-20/25 for throughputs up to 30 kg/h*
Type CCD-20/40 for throughputs up to 50 kg/h*

*depends on material, numbers based on powder coatings formulations

Options

  • Cool Drum Coatings

  • Flaker Shafts

  • Non-Metallic Belts

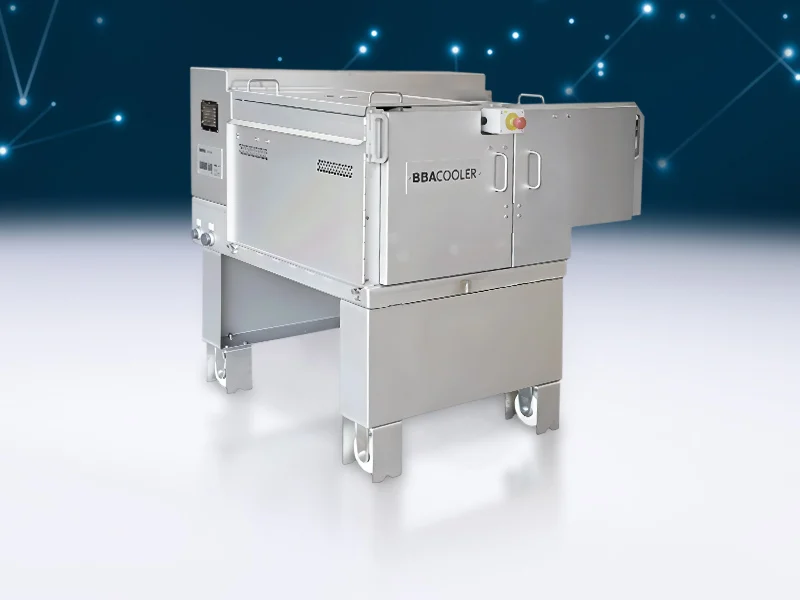

Small-scale Production

Type CCCn-40/40 for throughputs up to 150 kg/h*
Type CCCn-40/60 for throughputs up to 250 kg/h*

*depends on material, numbers based on powder coatings formulations

Options

  • Cool Drum Coatings

  • Flaker Shafts

  • Non-Metallic Belts

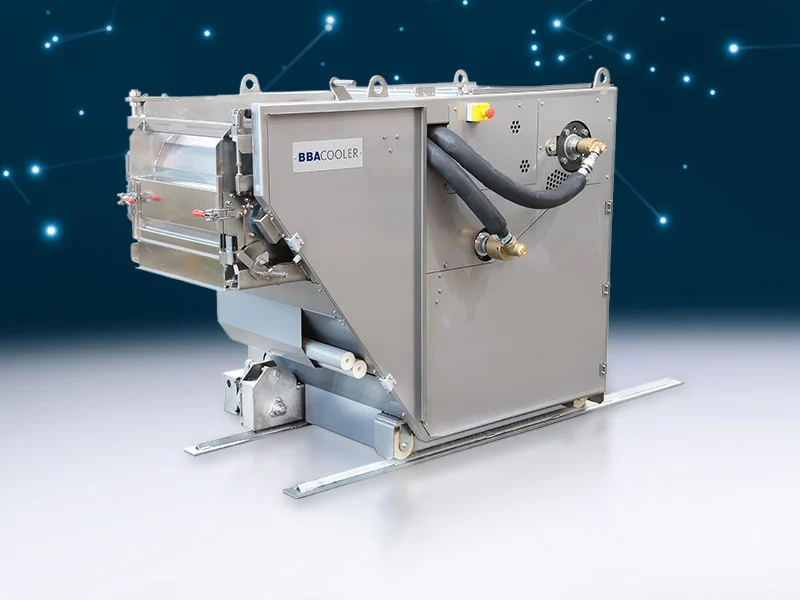

Production

Type CCC-95/60 for throughputs up to 450 kg/h*
Type CCC-95/100 for throughputs up to 750 kg/h*

*depends on material, numbers based on powder coatings formulations

Options

  • Low viscous products
  • Cooling Drum Coatings
  • Flaker Shafts
  • Lateral displacement
  • Non-Metallic Belts

Large-scale production

Type CCC-110/150 for throughputs up to 1’200 kg/h*
Type CCC-150/150 for throughputs up to 1’600 kg/h*
Type CCC-180/150 for throughputs up to 2’200 kg/h*

*depends on material, numbers based on powder coatings formulations

Options

  • Low viscous products
  • Cooling Drum Coatings
  • Flaker Shafts
  • Lateral displacement
  • Non-Metallic Belts

Additional Equipment

More about us

Service

Our range of services covers everything from sales to upgrades for your BBA Cooler. We support our customers starting from the actual implementation of their material processing.

Applications

Learn more about the applications and industries in which our BBA Cooling Technology coolers are successfully used.

Steel Belt Cooler Type CCn

The Steel Belt Coolers are characterised by their robustness and clearly structured design. The modular design, comprising the main components of the calender, steel belt with spray zone and crusher unit, offers maximum flexibility across a range of performance variants for a wide variety of applications.
